Actual Product May Vary From Image

SAMI-2I BSF

Name: SAMI-2I BSF
Brand: Bussmann
SKU: SAMI-2I BSF
Availability: OutOfStock

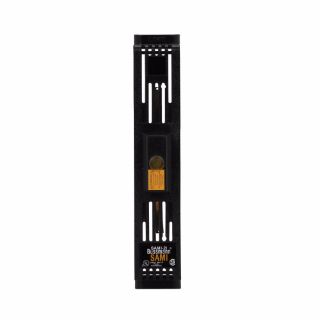

Bussmann SAMI-2I SAMI™ Dead Front Indicating Class KS Fuse Cover, 0 to 30 A, 600 VAC/VDC, For Use With Class H/K5/R Midget Fuse, Thermoplastic, Black

Manufacturer: Bussmann

Manufacturer part number: SAMI-2I

Availability: Expected Leadtime 56 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Dead Front Indicating Class KS

Description

Bussmann Fuse Cover, Dead Front Indicating Class KS, Series: SAMI™, 0 to 30 A, 600 VAC/VDC, For Use With: Class H/K5/R Midget Fuse, 7.03 in Length, 1.3 in Width, 2.07 in Height, Thermoplastic, Black

Application

Electrical Assemblies, Panels and OEMs Applications

Standards

CE Certified | CSA File No. LR47235-93C | RoHS Compliant | UL 94-V-2 Flammability Rated | UL Listed

Features

Insulated cover allows field conversion of fuses mounted in open fuse blocks to dead front configuration
Units are reusable
Allows visual marking of line and load side of fuses

Specifications

Amperage Rating:	0 to 30 A
Color:	Black
Country of Origin:	CN
Height:	2.07 in
Length:	7.03 in
Material:	Thermoplastic
Series:	SAMI™
Suitable For Use With:	Class H/K5/R Midget Fuse
Voltage Rating:	600 VAC/VDC
Width:	1.3 in
