SA2-X PAN

Name: SA2-X PAN
SKU: SA2-X PAN
Availability: OutOfStock

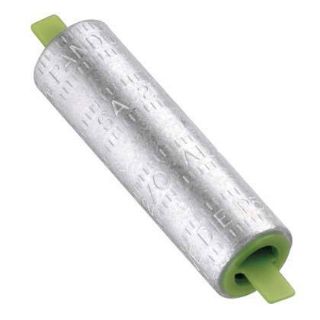

Actual Product May Vary From Image

Product Details

Manufacturer part number:

SA2-X

product.name:

SA2-X PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Description

Panduit® Pan-Term® splices are designed and manufactured for fast assembly and long reliable performance. As the demand for splices increases, it becomes essential to provide a complete system for termination products. We provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.

Panduit® Pan-Lug™ Compression Butt Splice, Series: SA Series, Stranded Aluminum/Copper Conductor, 2 AWG Conductor, 2 in Length, Seamless Barrel, 0.31 in ID x 0.53 in OD Barrel, 35 kV, Specifications: 7/16 in L Wire Strip, 11.1 mm Mounting Hole, 90 deg C, Aluminum, Pink, Tin Plated

Application

For stranded aluminum-to-aluminum or copper-to-copper conductors

Standards

ARRA Compliant | Buy American Act Compliant | CSA Certified | RoHS Compliant | UL Listed

Features

Color-coded end plug and Panduit® and specified competitor die index numbers marked on barrel for proper crimp die selection
Internal solid center prevents over-insertion of conductor
Tin-plated to inhibit corrosion
Manufactured from high conductivity thick wall wrought aluminum
Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies

Specifications

Barrel Size:	0.31 in ID x 0.53 in OD
Barrel Type:	Seamless
Color:	Pink
Conductor Size:	2 AWG
Conductor Type:	Stranded Aluminum/Copper
Finish:	Tin Plated
Length:	2 in
Material:	Aluminum
Series:	SA Series
Specifications:	7/16 in L Wire Strip, 11.1 mm Mounting Hole
Temperature Rating:	90 deg C
Voltage Rating:	35 kV
