S36LW RBC

Name: S36LW RBC
Brand: Roller Bearing Corporation
SKU: S36LW RBC
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Roller Bearing Corporation

Manufacturer part number:

S36LW

product.name:

S36LW RBC

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

RBC®

Type

Needle Roller

Description

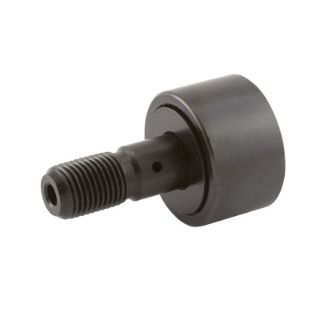

Needle Roller Cam Followers have a heavy outer ring cross section and a full complement of needle rollers. They offer high dynamic and static load carrying capability, and anti-friction performance, in a compact design. They are used as track rollers, cam followers, and in a wide range of linear motion systems.

RBC® HexLube® Cylindrical Cam Follower, Needle Roller, Series: S-LW, 1-1/8 in Roller Dia, 5/8 in Roller Width, 7/16 in Stud Dia, 1 in Stud Length, 7/16-20 UNF-2A, 1/2 in Thread Length, 2300 lb Dynamic/4800 lb Static, 4500 rpm Maximum, 250 deg F, Standard Stud, Sealed Closure, Hex, Chrome Steel Roller, Chrome Steel Stud, Black Oxide

Application

Material Handling, Turntable Mounting, Lift Trucks and Textile Machinery

Standards

ANSI/ABMA Standard 11 | ASPR | CAS | DFAR | FAR Standards

Features

Inventory reduction of about 50%
Allows relubrication in tight spots or when stud access is limited
HexLube® universal cam follower can eliminate the need to stock screwdriver slots or unsealed cam followers
Heavy stud cam followers are designed to provide additional stud strength for applications with high loading or shock loads
Standard stud cam followers offer the mounting convenience of a threaded stud and are designed to accommodate moderate loads
Double sealed to keep grease in and contaminants out

Specifications

Closure Type:	Sealed
Country of Origin:	US
Finish:	Black Oxide
Head Type:	Hex
Load Capacity:	2300 lb Dynamic/4800 lb Static
Maximum Speed:	4500 rpm
Roller Diameter:	1-1/8 in
Roller Material:	Chrome Steel
Roller Width:	5/8 in
Series:	S-LW
Stud Diameter:	7/16 in
Stud Length:	1 in
Stud Material:	Chrome Steel
Stud Type:	Standard
Temperature Rating:	250 deg F
Thread Length:	1/2 in
Thread Size:	7/16-20 UNF-2A
