S16LW RBC

Name: S16LW RBC
Brand: Roller Bearing Corporation
SKU: S16LW RBC
Availability: InStock

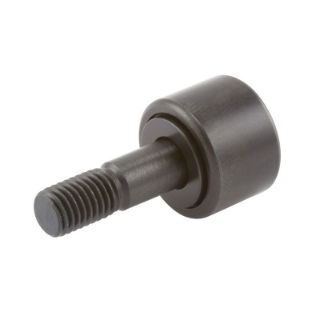

Actual Product May Vary From Image

Product Details

Manufacturer:

Roller Bearing Corporation

Manufacturer part number:

S16LW

product.name:

S16LW RBC

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

RBC®

Type

Needle Roller

Description

Needle Roller Cam Followers have a heavy outer ring cross section and a full complement of needle rollers. They offer high dynamic and static load carrying capability, and anti-friction performance, in a compact design. They are used as track rollers, cam followers, and in a wide range of linear motion systems.

RBC® HexLube® Cylindrical Cam Follower, Needle Roller, Series: S-LW, 1/2 in Roller Diameter, 3/8 in Roller Width, 0.19 in Stud Diameter, 5/8 in Stud Length, #10-32 UNF-2A Thread, 1/4 in Thread Length, 770 lb Dynamic/1100 lb Static Load, 5000 rpm Maximum, 250 deg F, Standard Stud, Sealed Closure, Hex Head, Chrome Steel Roller, Chrome Steel Stud, Black Oxide

Application

Material Handling, Turntable Mounting, Lift Trucks and Textile Machinery

Standards

ANSI/ABMA Standard 11 | ASPR | CAS | DFAR | FAR Standards

Features

Inventory reduction of about 50%
Allows relubrication in tight spots or when stud access is limited
HexLube® universal cam follower can eliminate the need to stock screwdriver slots or unsealed cam followers
Heavy stud cam followers are designed to provide additional stud strength for applications with high loading or shock loads
Standard stud cam followers offer the mounting convenience of a threaded stud and are designed to accommodate moderate loads
Double sealed to keep grease in and contaminants out

Specifications

Closure Type:	Sealed
Country of Origin:	US
Finish:	Black Oxide
Head Type:	Hex
Load Capacity:	770 lb Dynamic/1100 lb Static
Maximum Speed:	5000 rpm
Roller Diameter:	1/2 in
Roller Material:	Chrome Steel
Roller Width:	3/8 in
Series:	S-LW
Stud Diameter:	0.19 in
Stud Length:	5/8 in
Stud Material:	Chrome Steel
Stud Type:	Standard
Temperature Rating:	250 deg F
Thread Length:	1/4 in
Thread Size:	#10-32 UNF-2A
