S1630 MSG

Name: S1630 MSG
Brand: Martin Sprocket & Gear
SKU: S1630 MSG
Availability: OutOfStock

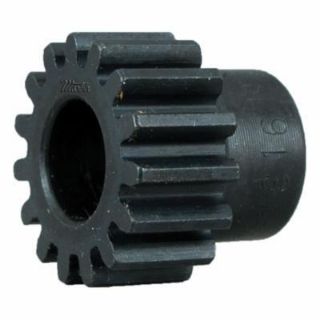

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

S1630

product.name:

S1630 MSG

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Martin

Type

External Tooth Reborable

Description

Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.

Martin Stock Spur Gear, External Tooth Reborable, 1/2 to 15/16 in Bore Dia, 2 in Outside Dia, 30 Teeth, 16 Diametral Pitch, 1-7/8 in, 1/2 in Face Width, Type B, 1-5/8 in Hub Dia, 1/2 in Hub Projection, 1 in Overall Length, 14.5 deg Pressure Angle, Steel

Specifications

Bore Diameter:	1/2 to 15/16 in
Country of Origin:	US
Diametral Pitch:	16
Face Width:	1/2 in
Hub Diameter:	1-5/8 in
Hub Projection:	1/2 in
Hub Type:	Type B
Material:	Steel
Number of Teeth:	30
Outside Diameter:	2 in
Overall Length:	1 in
Pitch Diameter:	1-7/8 in
Pressure Angle:	14.5 deg
