S1624 MSG

Name: S1624 MSG
Brand: Martin Sprocket & Gear
SKU: S1624 MSG
Availability: OutOfStock

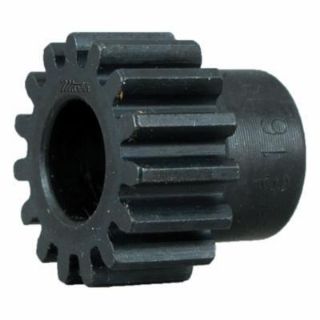

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

S1624

product.name:

S1624 MSG

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Martin

Type

External Tooth Reborable

Description

Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.

Martin Stock Spur Gear, External Tooth Reborable, 1/2 to 3/4 in Bore Dia, 1-5/8 in Outside Dia, 24 Teeth, 16 Diametral Pitch, 1-1/2 in, 1/2 in Face Width, Type B, 1.313 in Hub Dia, 0.438 in Hub Projection, 0.938 in Overall Length, 14.5 deg Pressure Angle, Steel

Specifications

Bore Diameter:	1/2 to 3/4 in
Country of Origin:	US
Diametral Pitch:	16
Face Width:	1/2 in
Hub Diameter:	1.313 in
Hub Projection:	0.438 in
Hub Type:	Type B
Material:	Steel
Number of Teeth:	24
Outside Diameter:	1-5/8 in
Overall Length:	0.938 in
Pitch Diameter:	1-1/2 in
Pressure Angle:	14.5 deg
