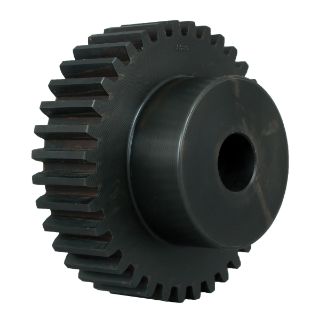

Actual Product May Vary From Image

S1232 MSG

Name: S1232 MSG
Brand: Martin Sprocket & Gear
SKU: S1232 MSG
Availability: OutOfStock

Martin S1232 Reboreable Stock Spur Gear, 12 Diametral Pitch, 14.5 deg Pressure Angle, 3/4 in W Face, 32 Teeth, 2.667 in Dia Pitch, 5/8 to 1-5/16 in Dia Bore, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: S1232

Availability: Expected Leadtime 4 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Martin

Type

Reboreable

Description

Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.

Martin Stock Spur Gear, Reboreable, 5/8 to 1-5/16 in Bore Dia, 2.833 in Outside Dia, 32 Teeth, 12 Diametral Pitch, 2.667 in, 3/4 in Face Width, Type B, 2-1/4 in Hub Dia, 5/8 in Hub Projection, 1-3/8 in Overall Length, 14.5 deg Pressure Angle, Steel

Standards

AGMA 6-8

Features

Manufactured of high carbon steel material
Precise machining and processes ensure consistent finish and high quality

Specifications

Bore Diameter:	5/8 to 1-5/16 in
Country of Origin:	US
Diametral Pitch:	12
Face Width:	3/4 in
Hub Diameter:	2-1/4 in
Hub Projection:	5/8 in
Hub Type:	Type B
Material:	Steel
Number of Teeth:	32
Outside Diameter:	2.833 in
Overall Length:	1-3/8 in
Pitch Diameter:	2.667 in
Pressure Angle:	14.5 deg
