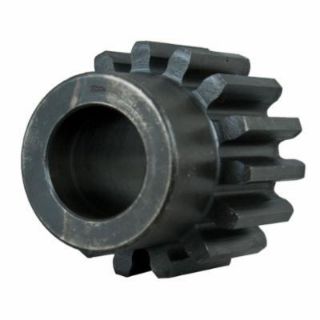

S1226 MSG

Name: S1226 MSG
Brand: Martin Sprocket & Gear
SKU: S1226 MSG
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

S1226

product.name:

S1226 MSG

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Martin

Type

External Tooth Reborable

Description

Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.

Martin Stock Spur Gear, External Tooth Reborable, 5/8 to 1-3/16 in Bore Dia, 2.333 in Outside Dia, 26 Teeth, 12 Diametral Pitch, 2.167 in, 3/4 in Face Width, Type B, 1.938 in Hub Dia, 5/8 in Hub Projection, 1-3/8 in Overall Length, 14.5 deg Pressure Angle, Steel

Specifications

Bore Diameter:	5/8 to 1-3/16 in
Country of Origin:	US
Diametral Pitch:	12
Face Width:	3/4 in
Hub Diameter:	1.938 in
Hub Projection:	5/8 in
Hub Type:	Type B
Material:	Steel
Number of Teeth:	26
Outside Diameter:	2.333 in
Overall Length:	1-3/8 in
Pitch Diameter:	2.167 in
Pressure Angle:	14.5 deg
