RSAO2 7/16 TKN

Name: RSAO2 7/16 TKN
Brand: Timken
SKU: RSAO2 7/16 TKN
Availability: OutOfStock

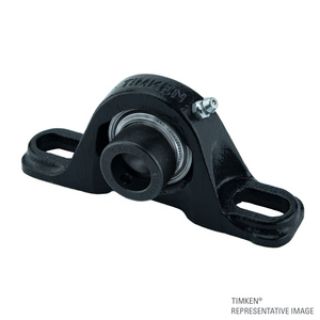

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

RSAO2 7/16

product.name:

RSAO2 7/16 TKN

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Timken® Fafnir®

Description

Designed to maximize performance, Timken® Fafnir® ball bearing housed units combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken Fafnir housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line

Ball Pillow Block Housed Unit | 61.93 mm 2.44 in Bore 130 mm 5.12 in OD

Features

LSAO pillow blocks are equipped with GN-KLLB wide-inner-ring ball bearings
All units are suited for installations where the load is heavy in proportion to the shaft diameter or where considerable shock loads exist
All units are for use in wet or extremely dirty conditions
These units are prelubricated and ready for immediate use. A grease fitting is also provided for relubrication if required
All units are supplied with a self-locking collar

Specifications

Bearing Material:	Steel
Bearing Type:	Wide Inner Ring Ball Bearing Insert
Bolt Center - in:	11.25
Bolt Center - mm:	285.75
Bolt Size - in:	0.78740157480315
Bolt Size - mm:	20
Bore Size (ID) - in:	2.4381
Bore Size (ID) - mm:	61.92774
Bore Type:	Round
Component (I/R; O/R assembly):	Assembly
Duty Type:	Heavy duty
Dynamic Load Rating:	18400
Housing Material:	Cast Iron
Housing Style:	Pillow block
Inner Ring Width - Inch:	3.125
Inner Ring Width - Millimeter:	79.375
Insert Part Number:	N/P
Internal Clearance:	P(C3)
Load Rating UOM:	LB
Locking Type:	Eccentric
Lubrication Hole/Groove:	YES
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/housed-units/
Material - Rolling Elements (Ball or Roller):	Steel
Outer Diameter - in:	5.1181
Outer Diameter - mm:	129.99974
Outer Diameter Type:	Spherical
Outer Ring Width - Inch:	1.299
Outer Ring Width - Millimeter:	32.9946
Overall Height - in:	7.344
Overall Height - mm:	186.5376
Overall Length - in:	13.75
Overall Length - mm:	349.25
Overall Width - in:	3.904
Overall Width - mm:	99.1616
Precision class:	ISO Normal/ABEC1
Relubricatable:	YES
Retainer Material:	Nylon
Retainer Type:	One Piece Molded Nylon
Rolling Element:	Ball
Shaft Centerline - in:	4.125
Shaft Centerline - mm:	104.775
Static Load Rating:	11700
