RNA6902-XL INA

Name: RNA6902-XL INA
Brand: INA
SKU: RNA6902-XL INA
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

INA

Manufacturer part number:

RNA6902-XL

product.name:

RNA6902-XL INA

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

INA

Description

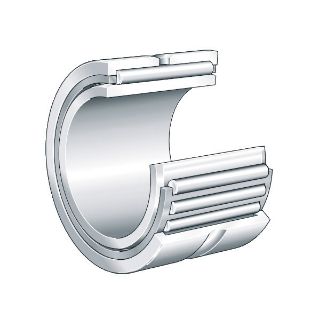

Needle roller bearings are rolling bearings with a low radial section height and high load carrying capacity, which are used as non-locating bearings and are part of the group of radial needle roller bearings. These bearings comprise machined outer rings, needle roller and cage assemblies and removable inner rings, i.e. they can be supplied with or without an inner ring in accordance with the application. In contrast to the outer cups of drawn cup needle roller bearings, which are produced by forming methods, the bearing rings are machined. Due to their non-locating bearing function, the bearings cannot guide the shaft axially in any direction.

INA Needle Roller Bearing, Series: RNA69, 20 mm Bore, 28 mm OD, 1 Rows, 23 mm Width, Open Closure, 25500 N Load, Sheet Steel Cage, 21100 rpm Maximum, -30 to 120 deg C

Application

Printing Machinery, Food and Packaging Industry, Compressors, Fluid and Hydraulic Pumps, Automotive Chassis, Gearboxes for Industrial, Rail and Wind Turbine, Agricultural Vehicles and Equipment

Features

The bearings can support high to very high radial forces
Can only support radial loads and, as a result, are highly suitable for use as non-locating bearings (they permit axial displacement of the shaft relative to the housing in the bearing)
Permit high speeds in spite of line contact
Compensate misalignments between the shaft and housing
Require only a very small radial design envelope, particularly if the bearing arrangement is designed without an inner ring
Result in particularly compact, cost-effective and economical bearing arrangements
Without inner ring
X-life design
19500 N dynamic/25500 N static

Specifications

Bore Diameter:	20 mm
Cage Material:	Sheet Steel
Closure Type:	Open
Country of Origin:	SK
Load Capacity:	25500 N
Maximum Speed:	21100 rpm
Number of Rows:	1
Outside Diameter:	28 mm
Series:	RNA69
Temperature Rating:	-30 to 120 deg C
Width:	23 mm
