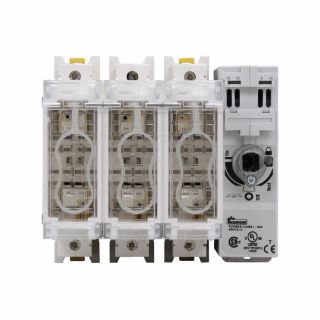

RDF30J-3 BSF

Name: RDF30J-3 BSF
Brand: Bussmann
SKU: RDF30J-3 BSF
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

RDF30J-3

product.name:

RDF30J-3 BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 42 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Class J Fused Standard

Description

Bussmann UL 98 and UL 489 fused disconnect switches "break" and "make" power circuits ON and OFF load. The switches employ double break contacts per pole that help ensure complete isolation of the fuse when the switch is in the "Off" position.

Bussmann Rotary Disconnect Switch, Class J Fused Standard, Series: RDF, 600 VAC, 250 VDC, 30 A, 7-1/2 hp, 20 hp at 600 VAC, 5 hp at 250 VDC, 3 ph, 3 Pole, 200 kA Short Circuit, Front/Side Handle Actuator, DIN Rail/Panel/Flange Mounting, -20 to 70 deg C, 5.71 in L x 4.14 in W x 5.36 in H Dimensions

Application

Stationary Machine Equipment in Factory and Robotics Applications

Standards

Features

Make and break power under load
Double break by pole
Fingersafe® design covers
Defeatable handles automatically re-latch when the panel door is closed
Most disconnect switches are front, right side, flange or direct handle operable

Specifications

Actuator Type:	Front/Side Handle
Amperage Rating:	30 A
Country of Origin:	FR
Dimensions:	5.71 in L x 4.14 in W x 5.36 in H
Horsepower:	20/5 hp
Mounting Type:	DIN Rail/Panel/Flange
Number of Poles:	3
Phase:	3 ph
Series:	RDF
Short Circuit Current Rating:	200 kA
Temperature Rating:	-20 to 70 deg C
Terminal Type:	Lug
Voltage Rating:	600 VAC, 250 VDC
