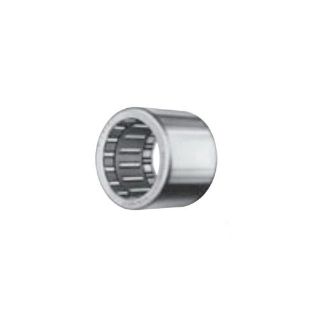

Picture of RCB-061014 KOY

Actual Product May Vary From Image

RCB-061014 KOY

Koyo RCB-061014 Drawn Cup Roller Clutch and Bearing Assembly With Internal Spring, 3/8 in Dia Bore, 5/8 in OD, 7/8 in W

Manufacturer: Koyo Bearings

Manufacturer part number: RCB-061014

Availability: Expected Leadtime 5 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Koyo

Description

Koyo Drawn Cup Roller Clutch and Bearing Assembly, Series: RCB, 3/8 in Bore, 5/8 in OD, 7/8 in Width, 1350 lb Dynamic/1100 lb Static Load

Features

Clutch and bearing assembly engages when the housing is rotated relative to shaft in direction of arrow marking (lock), as labeled on cup
Type RCB clutch and bearing assemblies have springs integrally molded with the cage to position the rollers for lockup

Specifications

Bore Diameter:	3/8 in
Load Capacity:	1350 lb Dynamic/1100 lb Static
Outside Diameter:	5/8 in
Series:	RCB
Width:	7/8 in
