R-3W-SR-KB GEP

Name: R-3W-SR-KB GEP
SKU: R-3W-SR-KB GEP
Availability: InStock

R-3W-SR-KB GEP

Actual Product May Vary From Image

Product Details

Manufacturer part number:

R-3W-SR-KB

product.name:

R-3W-SR-KB GEP

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

SafeSide®

Type

Non-Flashing

Description

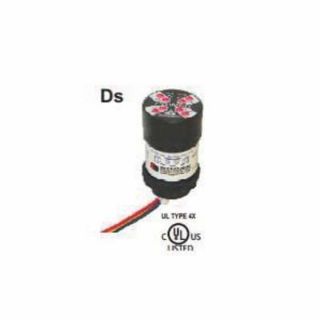

SafeSide thru-door voltage indicators provide electrical safety information while the panel doors are safely closed. This one-size-fits-all solution detects 3-phase AC or DC voltage from 40-750 VAC/30-1000 VDC. The encapsulated construction and redundant circuit design means rugged reliability. SafeSide products are available with flashing LEDs (R-3W).

SafeSide® Voltage Indicator, Non-Flashing, 40/750 VAC, 30/1000 VDC, 1.2 W Wattage, Specifications Met: UL Listed, 30 mm Pushbutton/Pilot Hole Mounting, NEMA 4X/12/13 NEMA Rating, -20 to 55 deg C, 1.549 in Dia x 3.071 in H Dimensions

Standards

UL Listed

Features

Redundant circuitry/long-life LED's
Potted construction with 6 ft leads
Phase insensitive
High surge immunity

Specifications

Dimensions:	1.549 in Dia x 3.071 in H
Mounting Type:	30 mm Pushbutton/Pilot Hole
NEMA Rating:	NEMA 4X/12/13
Specifications Met:	UL Listed
Temperature Rating:	-20 to 55 deg C
Voltage Rating:	40/750 VAC, 30/1000 VDC
Wattage:	1.2 W
