Actual Product May Vary From Image

QS 1 L 36 THO

Name: QS 1 L 36 THO
Brand: Thomson Industries
SKU: QS 1 L 36 THO
Availability: OutOfStock

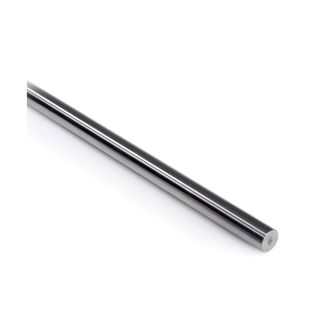

Thomson® 60 Case® QS 1 L 36 Standard Quick Shaft, L Class, 36 in L, Carbon Steel

Manufacturer: Thomson Industries

Manufacturer part number: QS 1 L 36

Availability: Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Thomson®

Type

Standard

Description

Thomson® 60 Case® quick shaft can be easily stocked by authorized Thomson® distributors or end users in preparation for that 3rd shift breakdown or other emergencies. Often distributors perform their own special machining of various lengths and do not want to carry different cut to length sizes. All Thomson® quick shaft shafting are oil preserved and placed in a VCI bag for long-term storage and labeled for convenience.

Thomson® 60 Case® Quick Shaft, Standard, 36 in Length, 1 in Shaft Dia, Class: L, 0.999 in Dia Tolerance, 0.08 in Hardness Depth, Carbon Steel

Application

For Ball Bushing® size XA open, Super Ball Bushing®, Super Smart Ball Bushing® and adjustable bearings and pillow blocks

Features

Diameter range between 3/16 and 4 in
Case hardness 60 HRC minimum
Roundness within 0.000080 in
Centerless ground for an industry leading catalogued surface finish of 8 Ra maximum
Straight within 0.001 in/ft cumulative when shipped from the factory

Specifications

Class:	L
Country of Origin:	MX
Diameter Tolerance:	0.999 in
Hardness Depth:	0.08 in
Length:	36 in
Material:	Carbon Steel
Shaft Diameter:	1 in
