Actual Product May Vary From Image

PW2ABC5 HWD

Name: PW2ABC5 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: PW2ABC5 HWD
Availability: OutOfStock

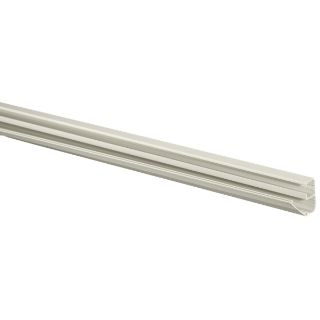

Wiring Device-Kellems WALLTRAK® PW2ABC5 Extruded Latching Standard Non-Metallic Raceway, 5 ft L x 2.12 in W x 1.04 in H, 2 Channel, Thermoplastic

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: PW2ABC5

Availability: Expected Leadtime 6 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

Extruded Latching Standard

Description

PolyTrak® non-metallic surface raceway is a complete system that includes raceway, fittings, boxes and devices. Sizes range from single channel PremiseTrak® to three channel. Super Basetrak® for all types of surface raceway requirements. Single and two channel latching raceways are dual rated for both power and data applications, reducing inventory requirements.

Wiring Device-Kellems WALLTRAK® Non-Metallic Raceway, Extruded Latching Standard, Series: PW2, 5 ft Length, 2.12 in Width, 1.04 in Height, 600 VAC, 2 Channels, Adhesive Back, Removable Cover, -25.6 to 158 deg F, Thermoplastic, Off-White

Application

For power, data, voice, audio, video applications, 5 ft base or cover and non-hazardous locations

Standards

ANSI/EIA/TIA-569A | UL 5A File No. E118895/E119190 | CSA C22.2 No. 62 File No. LR87514 | UL94 V-0 Flammability Rating

Features

Boxes have three cut always that can be utilized with WALLTRAK®, LANTrak® and Premisetrak® (latching) systems
Eliminates need to order three separate boxes and reducing inventory requirements
Boxes utilize Hubbell KP plates or iSTATION™ modules and bezels
Full capacity in-line boxes eliminate the need to de-rate the wire fill capacity due to the intrusion of devices into the raceway channel
5 ft-lb impact resistance
300 lb crush resistance
NEMA 1 enclosure
Made of UV stabilized PVC

Specifications

Back Type:	Adhesive
Color:	Off-White
Country of Origin:	US
Cover Type:	Latching/Removable
Height:	1.04 in
Length:	5 ft
Material:	Thermoplastic
Number of Channels:	2
Series:	PW2
Temperature Rating:	-25.6 to 158 deg F
Voltage Rating:	600 VAC
Width:	2.12 in
