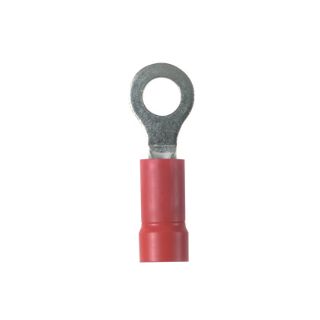

PV18-8R-CY PAN

Name: PV18-8R-CY PAN
SKU: PV18-8R-CY PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer part number:

PV18-8R-CY

product.name:

PV18-8R-CY PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Type PV-R

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.

Panduit® Pan-Term™ Ring Terminal, Type PV-R, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #8 Stud, 0.91 in Length, Brazed Seam/Funnel Entry/Insulation Support Barrel, 0.31 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.26 in Clearance, 221 deg F, Copper, Tin Plated, Red

Application

High Vibration Applications

Standards

Features

Insulug type YAE-N nylon insulated terminals are designed with a multi-finger insulation grip for paper, EPR and other elastic or hard to grip insulations
The metal fingers firmly grip the insulation providing superior holding characteristics, cable support and strain relief
Types YAE-G terminals are rated 105 deg C and meet military standard AS25036 class 2 and SAE-AS7928 requirements
Multi-finger insulation grip - Provides superior insulation holding characteristics
Especially on epr and other elastic-type insulations
Brazed seam provides stronger more durable termination
Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
Deep V groove, inner barrel serrations - provide optimum conductivity, reliability and holding power
Smooth funnel entry provides easy wire insertion
Without inspection hole

Specifications

Barrel Type:	Brazed Seam/Funnel Entry/Insulation Support
Color:	Red
Conductor Size:	18 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Finish:	Tin Plated
Length:	0.91 in
Material:	Copper
Specifications:	0.15 in Dia Vinyl Insulation, 0.26 in Clearance, 5/16 in Mounting Hole Size, 5/16 in L Wire Strip, Ring Shape Enclosure
Stud Size:	#8
Temperature Rating:	221 deg F
Tongue Size:	0.31 in W x 0.03 in THK
Tongue Type:	Ring
Voltage Rating:	600 VAC
