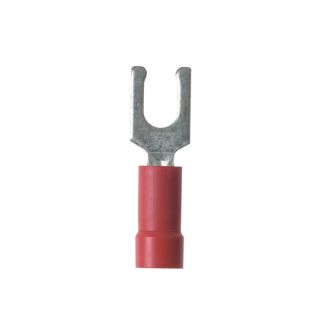

PV18-8LF-CY PAN

Name: PV18-8LF-CY PAN
SKU: PV18-8LF-CY PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer part number:

PV18-8LF-CY

product.name:

PV18-8LF-CY PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Loose Piece Insulated

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.

Panduit® Pan-Term® Fork Terminal, Loose Piece Insulated, Series: PV-LF, Copper/Solid/Stranded Conductor, #18 Conductor, #8 Stud, 0.97 in Length, Brazed Seam/Funnel Entry Barrel, Locking Fork Tongue, 0.29 in W x 0.03 in THK Tongue, 600 V, Specifications: 5/16 in L Wire Strip, 0.15 in Dia Max, 1/4 in Clearance, 0.31 in Mounting Hole, Fork Shape Enclosure, 221 deg F, Copper/Vinyl, Tin Plated, Red

Standards

Features

Fork design provides for fast and easy installation, without the need to remove fastener
Internal barrel serrations assure good wire contact and maximum tensile strength
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Brazed seam protects terminal barrel from splitting during the crimp process
Barrel of terminal internally beveled to provide quick and easy wire insertion

Specifications

Barrel Type:	Beveled Edge/Brazed Seam/Funnel Entry/Serrated
Color:	Red
Conductor Size:	#18
Conductor Type:	Copper/Solid/Stranded
Country of Origin:	MX
Finish:	Tin Plated
Length:	0.97 in
Material:	Copper
Series:	PV-LF
Specifications:	5/16 in L Wire Strip, 0.15 in Dia Max, 1/4 in Clearance, 0.31 in Mounting Hole, Fork Shape Enclosure
Stud Size:	#8
Temperature Rating:	221 deg F
Tongue Size:	0.29 in W x 0.03 in THK
Tongue Type:	Locking Fork
Voltage Rating:	600 V
