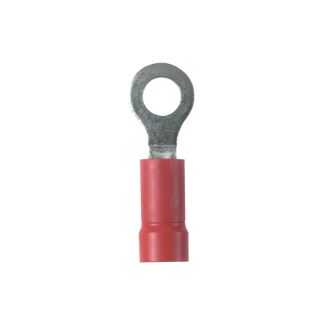

Actual Product May Vary From Image

PV18-6R-CY PAN

Name: PV18-6R-CY PAN
SKU: PV18-6R-CY PAN
Availability: OutOfStock

Panduit® Pan-Term™ PV18-6R-CY Type PV-R Loose Piece Standard Ring Terminal, 22 to 18 AWG Conductor, 0.86 in L, Brazed Seam/Funnel Entry Barrel, Copper/Vinyl, Red

Manufacturer part number: PV18-6R-CY

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Panduit®

Type

Type PV-R

Description

Panduit® Pan-Term™ Ring Terminal, Type PV-R Loose Piece Standard, Solid/Stranded Copper Conductor, 22 to 18 AWG Conductor, #6 Stud, 0.86 in Length, Brazed Seam/Funnel Entry Barrel, 0.25 in W x 0.032 in THK Tongue, 600 VAC, Specifications: 0.31 in L Wire Strip, 0.15 in Dia Maximum Wire Insulation, 0.22 in Clearance, 7.9 mm Mounting, 221 deg F, Copper/Vinyl, Tin Plated, Red

Standards

Features

Ring tongue design assures a secure connection in high vibration applications
Insulation support helps to prevent wire damage in bending applications
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Brazed Seam/Funnel Entry
Color:	Red
Conductor Size:	22 to 18 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Finish:	Tin Plated
Length:	0.86 in
Material:	Copper
Specifications:	0.15 in Dia Vinyl Insulation, 0.22 in Clearance, 5/16 in Mounting Hole Size, 5/16 in L Wire Strip, Ring Shape Enclosure
Stud Size:	#6
Temperature Rating:	221 deg F
Tongue Size:	0.25 in W x 0.032 in THK
Tongue Type:	Ring
Voltage Rating:	600 VAC
