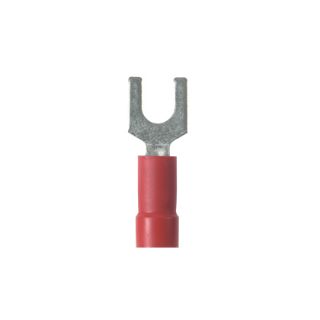

PV18-10F-CY PAN

Name: PV18-10F-CY PAN
SKU: PV18-10F-CY PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer part number:

PV18-10F-CY

product.name:

PV18-10F-CY PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Type PV-F Loose Piece

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.

Panduit® Pan-Term™ Fork Terminal, Type PV-F Reel Fed, Stranded Copper Conductor, 22 to 18 AWG Conductor, #10 Stud, 0.93 in Length, Brazed Seam/Funnel Entry Barrel, Standard Tongue, 0.35 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.15 in Dia Maximum Wire Insulation, 1/4 in Clearance, 221 deg F, Copper/Vinyl, Tin Plated, Red

Standards

Features

Locks in place for secure connection
Fork design provides for fast and easy installation, without the need to remove fastener
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Brazed Seam/Funnel Entry
Color:	Red
Conductor Size:	22 to 16 AWG
Conductor Type:	Stranded Copper
Country of Origin:	MX
Finish:	Tin Plated
Length:	0.93 in
Material:	Copper
Specifications:	0.15 in Dia Vinyl Insulation, 5/16 in Mounting Hole Size, 1/4 in Clearance, 5/16 in L Wire Strip, Fork Shape Enclosure
Stud Size:	#10
Temperature Rating:	221 deg F
Tongue Size:	0.35 in W x 0.03 in THK
Tongue Type:	Fork
Voltage Rating:	600 V
