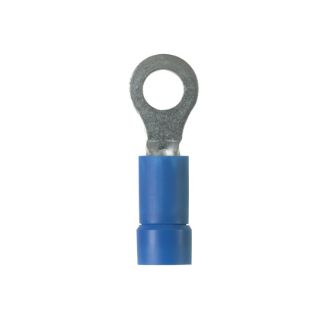

PV14-14R-C PAN

Name: PV14-14R-C PAN
SKU: PV14-14R-C PAN
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer part number:

PV14-14R-C

product.name:

PV14-14R-C PAN

CBT Inventory

100

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Type PV-R

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.

Panduit® Pan-Term™ Ring Terminal, Type PV-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, 1/4 in Stud, 1.12 in Length, Brazed Seam/Funnel Entry/Insulation Support Barrel, 0.46 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.38 in Clearance, 221 deg F, Copper, Tin Plated, Blue

Application

High Vibration Applications

Standards

Features

Insulation support helps to prevent wire damage in bending applications
Ring tongue design assures a secure connection in high vibration applications
Brazed seam protects terminal barrel from splitting during the crimp process
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Brazed Seam/Funnel Entry/Insulation Support
Color:	Blue
Conductor Size:	14 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Finish:	Tin Plated
Length:	1.12 in
Material:	Copper
Specifications:	0.17 in Dia Vinyl Insulation, 5/16 in Mounting Hole Size, 0.38 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure
Stud Size:	1/4 in
Temperature Rating:	221 deg F
Tongue Size:	0.46 in W x 0.03 in THK
Tongue Type:	Ring
Voltage Rating:	600 VAC
