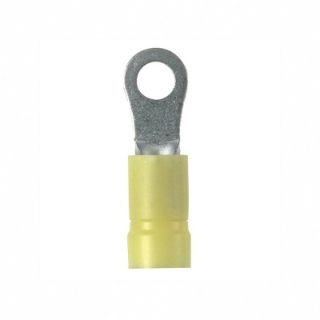

Panduit® Pan-Term™ PV10-8R-L Type PV-R Ring Terminal With 0.225 in Dia Vinyl Insulation, 12 to 10 AWG Conductor, 1.05 in L, Brazed Seam/Funnel Entry Barrel, Copper, Yellow

Manufacturer part number: PV10-8R-L

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Panduit®

Type

Type PV-R

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.

Panduit® Pan-Term™ Ring Terminal, Type PV-R, Solid/Stranded Conductor, 12 to 10 AWG Conductor, #8 Stud, 1.05 in Length, Brazed Seam/Funnel Entry Barrel, 0.31 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.31 in Clearance, 221 deg F, Copper, Tin Plated, Yellow

Application

High Vibration Applications

Standards

Features

Ring tongue design assures a secure connection in high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength
Insulation support helps to prevent wire damage in bending applications
Expanded wire entry designed to accommodate wire with a larger insulation thickness
Brazed seam protects terminal barrel from splitting during the crimp process

Specifications

Barrel Type:	Brazed Seam/Funnel Entry
Color:	Yellow
Conductor Size:	12 to 10 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Finish:	Tin Plated
Length:	1.05 in
Material:	Copper
Specifications:	0.225 in Dia Vinyl Insulation, 0.31 in Clearance, 5/16 in Mounting Hole Size, 5/16 in L Wire Strip, Ring Shape Enclosure
Stud Size:	#8
Temperature Rating:	221 deg F
Tongue Size:	0.31 in W x 0.04 in THK
Tongue Type:	Ring
Voltage Rating:	600 VAC
