PV10-14R-L PAN

Name: PV10-14R-L PAN
SKU: PV10-14R-L PAN
Availability: OutOfStock

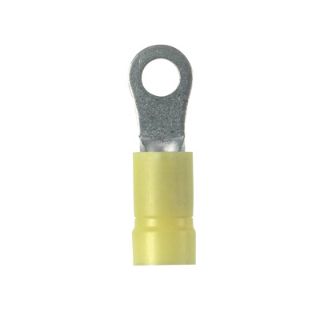

Actual Product May Vary From Image

Product Details

Manufacturer part number:

PV10-14R-L

product.name:

PV10-14R-L PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Type PV-R

Description

Panduit® Pan-Term™ Ring Terminal, Type PV-R Loose Piece, Solid/Stranded Conductor, 10 AWG Conductor, 1/4 in Stud, 1.23 in Length, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Ring Tongue, 0.52 in W x 0.04 in THK Tongue, 600 V, Specifications: 0.225 in Dia Vinyl Insulation, 5/16 in Mounting Hole Size, 0.38 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow

Application

High Vibration Applications

Standards

Features

Ring tongue design assures a secure connection in high vibration applications
Insulation support helps to prevent wire damage in bending applications
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Brazed Seam/Funnel Entry
Color:	Yellow
Conductor Size:	10 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Finish:	Tin Plated
Length:	1.23 in
Material:	Copper
Specifications:	0.225 in Dia Vinyl Insulation, 5/16 in Mounting Hole Size, 0.38 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure
Stud Size:	1/4 in
Temperature Rating:	221 deg F
Tongue Size:	0.52 in W x 0.04 in THK
Tongue Type:	Ring
Voltage Rating:	600 VAC
