PV10-10F-L PAN

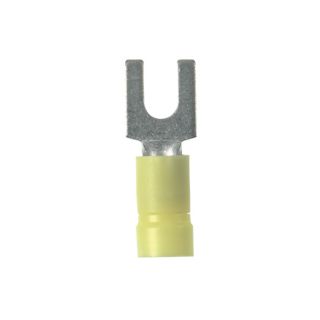

Picture of PV10-10F-L PAN
Actual Product May Vary From Image

Product Details

Manufacturer part number:
PV10-10F-L
product.name:
PV10-10F-L PAN
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

Type PV-F Loose Piece

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit® Pan-Term™ Fork Terminal, Type PV-F Reel Fed, Stranded Copper Conductor, 14 to 10 AWG Conductor, #10 Stud, 1.04 in Length, Brazed Seam/Funnel Entry Barrel, Standard Tongue, 0.37 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.23 in Dia Maximum Wire Insulation, 1/4 in Clearance, 221 deg F, Copper/Vinyl, Tin Plated, Yellow

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65 | RoHS Compliant | UL 486A/486B | UL 587H File No. E52164/LR31212 | UL94 V-0 Flammability Rated

Features

  • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
  • Flange design provides extra secure connection on a variety of applications
  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
  • Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:Brazed Seam/Funnel Entry
Color:Yellow
Conductor Size:14 to 10 AWG
Conductor Type:Stranded Copper
Country of Origin:MX
Finish:Tin Plated
Length:1.04 in
Material:Copper
Specifications:0.225 in Dia Vinyl Insulation, 1/4 in Clearance, 5/16 in L Wire Strip, 5/16 in Mounting Hole Size, Fork Shape Enclosure
Stud Size:#10
Temperature Rating:221 deg F
Tongue Size:0.37 in W x 0.04 in THK
Tongue Type:Fork
Voltage Rating:600 VAC
