PT1IE HWD

Product Details

Manufacturer part number:
PT1IE
product.name:
PT1IE HWD
CBT Inventory
4
Vendor Inventory
Loading...
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Internal Extruded Non-Metallic Non-Latching Standard

Description

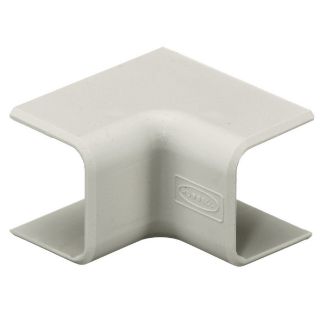

Wiring Device-Kellems PremiseTrak® Raceway Elbow, Internal Extruded Non-Metallic Non-Latching Standard, 90 deg Bend, For Use With: PremiseTrak® PT1 Series Non-Latching Non-Metallic Raceway, Off-White, 1.3 in L x 1.3 in W x 1 in H Dimensions

Application

For non-hazardous location

Standards

CSA C22.2 File #62 | UL 5A File #E118895/E119190 | UL94V-0

Features

  • For inside surfaces at right angles
  • 0.28 sq-in nominal cross section
  • Environmental flammability: UL94V-0
  • Environmental operating temperature: -25.6 to 158 deg F

Includes

Cover

Specifications

Bend Angle:90 deg
Color:Off-White
Country of Origin:US
Dimensions:1.3 in L x 1.3 in W x 1 in H
Material:PVC
Suitable For Use With:PremiseTrak® PT1 Series Non-Latching Non-Metallic Raceway

Products Specifications

Brand Name
Hubbell
