PN18-6F-C PAN

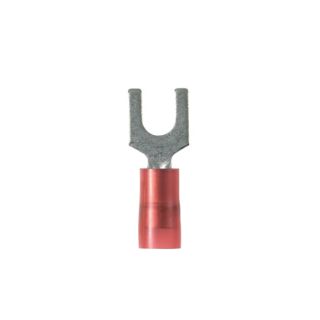

Picture of PN18-6F-C PAN
Actual Product May Vary From Image

Product Details

Manufacturer part number:
PN18-6F-C
product.name:
PN18-6F-C PAN
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

Loose Piece

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit® Pan-Term® Fork Terminal, Loose Piece, Series: PN-F, Copper Stranded Conductor, #18 Conductor, #6 Stud, 0.78 in Length, Sleeved Barrel, Standard Fork Tongue, 0.3 in W x 0.03 in THK Tongue, 600 V, Specifications: 7/32 in L Wire Strip, 0.08 to 0.145 in Dia Nylon Insulation, 0.2 in Clearance, Standard Barrel Configuration, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Red

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 No. 65 File No. LR31212 | RoHS Compliant | UL 486A | UL 486B/587H File No. E52164 | UL 94 V-2 HB Flammability Rated

Features

  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Locks in place for secure connection
  • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time

Specifications

Barrel Type:Butted Seam/Insulation Grip Sleeve/Standard
Color:Red
Conductor Size:#18
Conductor Type:Copper Stranded
Country of Origin:MX
Finish:Tin Plated
Length:0.78 in
Material:Copper
Series:PN-F
Specifications:7/32 in L Wire Strip, 0.08 to 0.145 in Dia Nylon Insulation, 0.2 in Clearance, Standard Barrel Configuration, Fork Shape Enclosure
Stud Size:#6
Temperature Rating:221 deg F
Tongue Size:0.3 in W x 0.03 in THK
Tongue Type:Standard Fork
Voltage Rating:600 V
