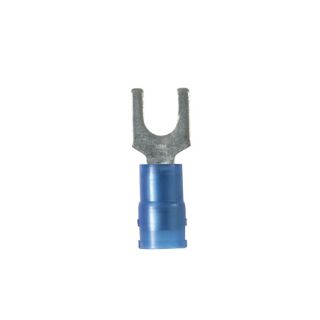

Actual Product May Vary From Image

PN14-8F-C PAN

Name: PN14-8F-C PAN
SKU: PN14-8F-C PAN
Availability: OutOfStock

Panduit® Pan-Term® PN14-8F-C Type PN-F Loose Piece Fork Terminal, 18 to 14 AWG Conductor, 0.85 in L, Internal Serration/Sleeve/Standard Barrel, Copper, Blue

Manufacturer part number: PN14-8F-C

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Panduit®

Type

Type PN-F Loose Piece

Description

Panduit® Pan-Term® Fork Terminal, Type PN-F Loose Piece, Stranded Copper Conductor, 18 to 14 AWG Conductor, #8 Stud, 0.85 in Length, Internal Serration/Sleeve/Standard Barrel, Standard Fork Tongue, 0.31 in W x 0.032 in THK Tongue, 600 V, Specifications: 0.162 in Dia Nylon Insulation, 7/32 in Mounting Hole Size, 0.23 in Clearance, 7/32 in L Wire Strip, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue

Standards

Features

Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
Fork design provides for fast and easy installation, without the need to remove fastener
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration application
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Insulation Grip Sleeve/Standard
Color:	Blue
Conductor Size:	18 to 14 AWG
Conductor Type:	Stranded Copper
Country of Origin:	MX
Finish:	Tin Plated
Length:	0.85 in
Material:	Copper
Specifications:	0.162 in Dia Nylon Insulation, 7/32 in Mounting Hole Size, 0.23 in Clearance, 7/32 in L Wire Strip, Fork Shape Enclosure
Stud Size:	#8
Temperature Rating:	221 deg F
Tongue Size:	0.31 in W x 0.03 in THK
Tongue Type:	Standard
Voltage Rating:	600 V
