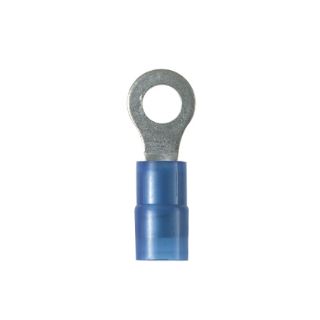

PN14-6R-C PAN

Name: PN14-6R-C PAN
SKU: PN14-6R-C PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer part number:

PN14-6R-C

product.name:

PN14-6R-C PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Type PN-R Loose Piece

Description

Panduit® Pan-Term™ Reel Smart™ Ring Terminal, Type PN-R Loose Piece, Solid/Stranded Conductor, 1 to 2.5 sq-mm Conductor, #6 Stud, 0.85 in Length, Insulation Grip Sleeve/Standard Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, Specifications: Nylon Insulation, 7/32 in L Wire Strip, 1/4 in Clearance, 5.6 mm Mounting Hole, 221 deg F, Copper, Tin Plated, Blue

Standards

Features

Ring tongue design assures a secure connection in high vibration applications
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Insulation Grip Sleeve/Standard
Color:	Blue
Conductor Size:	1 to 2.5 sq-mm
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Finish:	Tin Plated
Length:	0.85 in
Material:	Copper
Specifications:	0.162 in Dia Nylon Insulation, 7/32 in Mounting Hole Size, 1/4 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure
Stud Size:	#6
Temperature Rating:	221 deg F
Tongue Size:	0.31 in W x 0.03 in THK
Tongue Type:	Ring
Voltage Rating:	600 VAC
