PN14-6F-C PAN

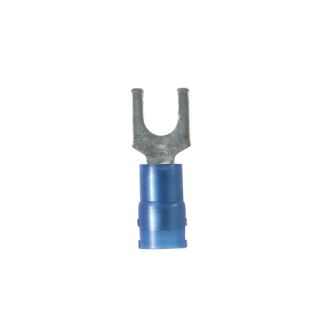

Picture of PN14-6F-C PAN
Actual Product May Vary From Image

Product Details

Manufacturer part number:
PN14-6F-C
product.name:
PN14-6F-C PAN
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

Type PN-F Loose Piece

Description

Panduit® Pan-Term® Fork Terminal, Type PN-F Loose Piece, Stranded Copper Conductor, 18 to 14 AWG Conductor, #6 Stud, 0.79 in Length, Internal Serration/Sleeve/Standard Barrel, Standard Fork Tongue, 0.28 in W x 0.032 in THK Tongue, 600 V, Specifications: 0.162 in Dia Nylon Insulation, 0.19 in Clearance, 7/32 in Mounting Hole Size, 7/32 in L Wire Strip, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 65 File No. LR31212 | RoHS Compliant | UL File No. 486A/486B | UL File No. 587H File No. E52164 | UL Listed | UL94 V-2 HB Flammability Rated

Features

  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
  • Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:Insulation Grip Sleeve/Standard
Color:Blue
Conductor Size:18 to 14 AWG
Conductor Type:Stranded Copper
Country of Origin:MX
Finish:Tin Plated
Length:0.79 in
Material:Copper
Specifications:0.162 in Dia Nylon Insulation, 0.19 in Clearance, 7/32 in Mounting Hole Size, 7/32 in L Wire Strip, Fork Shape Enclosure
Stud Size:#6
Temperature Rating:221 deg F
Tongue Size:0.28 in W x 0.03 in THK
Tongue Type:Standard
Voltage Rating:600 VAC
