PN14-14R-C PAN

Name: PN14-14R-C PAN
SKU: PN14-14R-C PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer part number:

PN14-14R-C

product.name:

PN14-14R-C PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Type PN-R

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.

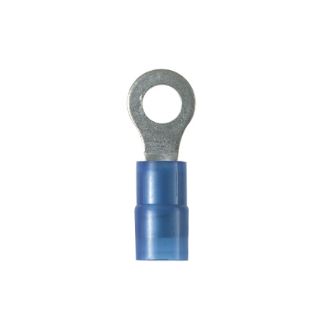

Panduit® Pan-Term™ Ring Terminal, Type PN-R, Solid/Stranded Conductor, 18 to 14 AWG Conductor, 1/4 in Stud, 1.05 in Length, Seamed/Standard Barrel, 0.46 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 7/32 in L Wire Strip, 0.38 in Clearance, 221 deg F, Copper, Tin Plated, Blue

Application

High Vibration Applications

Standards

Features

Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
Insulation support helps to prevent wire damage in bending applications
Ring tongue design assures a secure connection in high vibration applications

Specifications

Barrel Type:	Brazed Seam/Seamed/Standard/Internal Serration/Insulation Support
Color:	Blue
Conductor Size:	14 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Finish:	Tin Plated
Length:	1.05 in
Material:	Copper
Specifications:	0.162 in Dia Nylon Insulation, 0.38 in Clearance, 7/32 in Mounting Hole Size, 7/32 in L Wire Strip, Ring Shape Enclosure
Stud Size:	1/4 in
Temperature Rating:	221 deg F
Tongue Size:	0.46 in W x 0.03 in THK
Tongue Type:	Ring
Voltage Rating:	600 V
