PN10-14R-L PAN

Name: PN10-14R-L PAN
SKU: PN10-14R-L PAN
Availability: OutOfStock

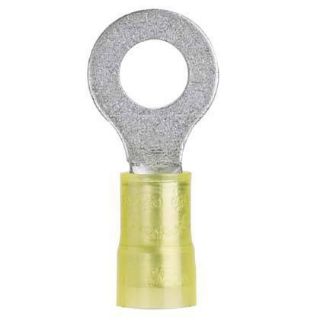

Actual Product May Vary From Image

Product Details

Manufacturer part number:

PN10-14R-L

product.name:

PN10-14R-L PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Type PN-R

Description

Panduit® Pan-Term™ Ring Terminal, Type PN-R, Solid/Stranded Conductor, 10 AWG Conductor, 1/4 in Stud, 1.21 in Length, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Ring Tongue, 0.52 in W x 0.04 in THK Tongue, 600 V, Specifications: 0.225 in Dia Nylon Insulation, 9/32 in Mounting Hole Size, 0.38 in Clearance, 9/32 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow

Application

High Vibration Applications

Standards

Features

Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
Fork design provides for fast and easy installation, without the need to remove fastener
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard
Color:	Yellow
Conductor Size:	10 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Finish:	Tin Plated
Length:	1.21 in
Material:	Copper
Specifications:	0.225 in Dia Nylon Insulation, 9/32 in Mounting Hole Size, 0.38 in Clearance,, 9/32 in L Wire Strip, Ring Shape Enclosure
Stud Size:	1/4 in
Temperature Rating:	221 deg F
Tongue Size:	0.52 in W x 0.04 in THK
Tongue Type:	Ring
Voltage Rating:	600 VAC
