PL050X080 UST

Name: PL050X080 UST
Brand: US Tsubaki
SKU: PL050X080 UST
Availability: OutOfStock

PL050X080 UST

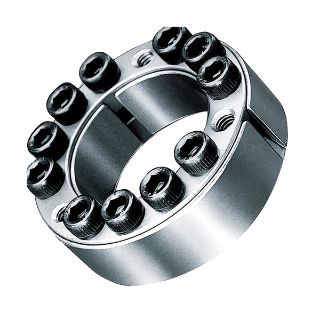

Actual Product May Vary From Image

Product Details

Manufacturer:

US Tsubaki

Manufacturer part number:

PL050X080

product.name:

PL050X080 UST

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Tsubaki®

Type

Multi-Purpose

Description

The Tsubaki® Power-Lock® has been highly acclaimed since its introduction into the locking device market. It carries many attractive features and comes in a wide range of models that meet the needs of customers.

Tsubaki® Power-Lock® Keyless Locking Device, Multi-Purpose, Series: AS Series, 50 mm Bore Dia, 80 mm Outside Dia, 1770 N-m Transmissible Torque, 70.6 kN Transmissible Thrust, 180 MPa Shaft Contact, 113 MPa Hub Contact, M8 x 22 Screw, 32 mm Overall Length, -30 to 200 deg C, Carbon Steel, Uncoated

Standards

RoHS Compliant

Features

Most popular series world-wide
Easy machining of shaft and hub
Can use on shafts with keyway
Low machining costs
Easy to install

Specifications

Bore Diameter:	50 mm
Country of Origin:	CN
Finish:	Uncoated
Hub Contact Pressure:	113 MPa
Material:	Carbon Steel
Outside Diameter:	80 mm
Overall Length:	32 mm
Screw Size:	M8 x 22
Series:	AS Series
Shaft Contact Pressure:	180 MPa
Temperature Rating:	-30 to 200 deg C
Transmissible Thrust:	70.6 kN
Transmissible Torque:	1770 N-m
