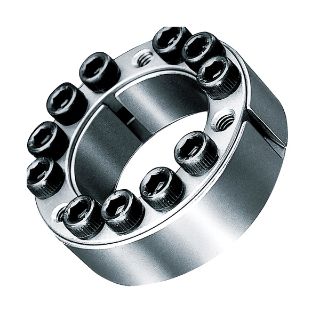

Actual Product May Vary From Image

PL025X050 UST

Name: PL025X050 UST
Brand: US Tsubaki
SKU: PL025X050 UST
Availability: OutOfStock

Tsubaki® Power-Lock® PL025X050 AS Series Multi-Purpose Keyless Locking Device, 25 mm Dia Bore, 50 mm OD, 26 mm OAL, Carbon Steel

Manufacturer: US Tsubaki

Manufacturer part number: PL025X050

Availability: Expected Leadtime 5 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Tsubaki®

Type

Multi-Purpose

Description

The Tsubaki® Power-Lock® has been highly acclaimed since its introduction into the locking device market. It carries many attractive features and comes in a wide range of models that meet the needs of customers.

Tsubaki® Power-Lock® Keyless Locking Device, Multi-Purpose, Series: AS Series, 25 mm Bore Dia, 50 mm Outside Dia, 421 N-m Transmissible Torque, 33.3 kN Transmissible Thrust, 203 MPa Shaft Contact, 101 MPa Hub Contact, M6 x 18 Screw, 26 mm Overall Length, -30 to 200 deg C, Carbon Steel, Uncoated

Standards

RoHS Compliant

Features

Most popular series world-wide
Easy machining of shaft and hub
Can use on shafts with keyway
Low machining costs
Easy to install

Specifications

Bore Diameter:	25 mm
Country of Origin:	CN
Finish:	Uncoated
Hub Contact Pressure:	101 MPa
Material:	Carbon Steel
Outside Diameter:	50 mm
Overall Length:	26 mm
Screw Size:	M6 x 18
Series:	AS Series
Shaft Contact Pressure:	203 MPa
Temperature Rating:	-30 to 200 deg C
Transmissible Thrust:	33.3 kN
Transmissible Torque:	421 N-m
