Home / PDB370-1 BSF

PDB370-1 BSF

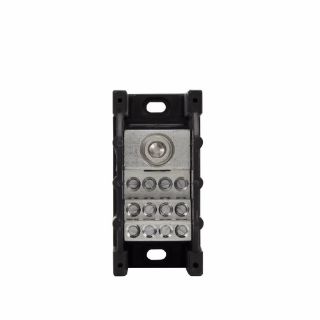

Picture of PDB370-1 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
PDB370-1
product.name:
PDB370-1 BSF
CBT Inventory
2
Vendor Inventory
Loading...
Availability:
Expected Leadtime 21 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Bussmann

Type

Barrier High SCCR

Description

EATON Bussmann series high short circuit current rating (SCCR) power distribution blocks provide up to 200 kA SCCR and help achieve compliance with NEC and OSHA requirements by resolving a common SCCR weak link in industrial control panels.
Bussmann Power Distribution Block, Barrier High SCCR Open, Series: PDB, 600 VAC/VDC, 310 A, 1 Pole, 1 Primary Connections/Pole, 12 Secondary Connection/Pole, 4 AWG to 300 kcmil Wire, 100/200 kA Short Circuit Current Rating, Aluminum, Tin Plated, 3.38 in L x 1.96 in W x 3.32 in H

Application

Electrical Assemblies, Panels and OEMs Applications

Standards

6228-01 | CE Certified | CSA Certified | File No. 47235 | File No. E256146 | IEC Certified | RoHS Compliant | UL 1953 | UL Guide QPQS

Features

  • 4 AWG to 300 kcmil copper line, 12 to 4 AWG and 8 to 4 AWG copper load side wire
  • IP20 finger safe

Specifications

Amperage Rating:310 A
Country of Origin:MX
Dimensions:3.38 in L x 1.96 in W x 3.32 in H
Finish:Tin Plated
Fuse Type:Class CC/G/J/T
Material:Aluminum
Number of Poles:1
Primary Connections/Pole:(1) Box Lug
Secondary Connection/Pole:(12) Box Lug
Series:PDB
Short Circuit Current Rating:100/200 kA
Voltage Rating:600 VAC/VDC
Wire Size:4 AWG to 300 kcmil
