PB22443H LBB

Name: PB22443H LBB
Brand: Rexnord
SKU: PB22443H LBB
Availability: InStock

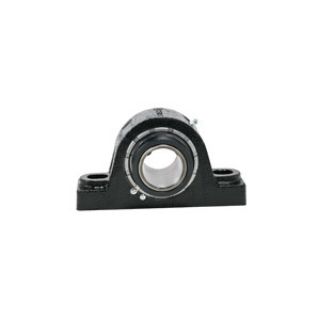

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

PB22443H

product.name:

PB22443H LBB

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Link-Belt®

Description

Self aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.

Link-Belt® Pillow Block Spherical Roller Bearing, Series: B22400, 2-11/16 in Bore, 8-1/8 in Bolt Center-to-Center Length, 3-1/4 in Base to Bore Centerline, 10-7/16 in Overall Length, 4 in Overall Width, 6-7/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 3-3/16 in Base Width, Single Set Screw Collar Locking Device, Clearance/Floating Labyrinth Seal, Non-Expansion (Fixed) Expansion, 51100 lb Dynamic/71500 lb Static Load, 225 deg F, 1950 rpm Maximum, Cast Iron, Powder Coated

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 11

Features

Spring locking collar locks inner ring securely to shaft
Long inner ring for high stability and load support
Self aligning double row
Double contoured retainer pockets
Slotted bolt holes in pillow block
Extended inner ring, separable outer rings
Misalignment capabilities total of 4 deg
Factory set clearance and lubrication
Field interchangeable seals

Specifications

Base to Bore Centerline:	3-1/4 in
Base Width:	3-3/16 in
Bolt Center-to-Center Length:	8-1/8 in
Bore Diameter:	2-11/16 in
Bore Type:	Round
Expansion Type:	Non-Expansion (Fixed)
Finish:	Powder Coated
Load Capacity:	51100 lb Dynamic/71500 lb Static
Locking Device:	Single Set Screw Collar
Material:	Cast Iron
Maximum Speed:	1950 rpm
Mounting Type:	Two-Bolt Base
Overall Height:	6-7/16 in
Overall Length:	10-7/16 in
Overall Width:	4 in
Seal Type:	Clearance/Floating Labyrinth
Series:	B22400
Temperature Rating:	225 deg F
