PB2-300 ILS

Name: PB2-300 ILS
Brand: Ilsco
SKU: PB2-300 ILS
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Ilsco

Manufacturer part number:

PB2-300

product.name:

PB2-300 ILS

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

ILSCO®

Type

Type PB Dual Rated

Description

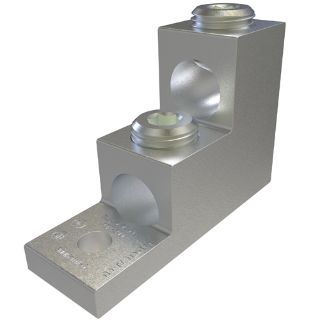

ILSCO® ClearChoice® Panelboard Stack Lug, Type PB Dual Rated, 6 AWG to 300 kcmil Conductor, 5/16 in Bolt/Stud, For Use With: Aluminum or Copper Conductor, 2000 VAC Electrical Rating, 2 Port, 5/16 in Hex, 3 in Length, 1 in Width, 2 in Height, Aluminum, Electro-Plated Tin

Application

Terminating Connector Applications

Standards

CSA File No. LR29601 | UL 486A-B | UL 453G | UL File No. E6207 | ECCN EAR99

Features

Manufactured from high strength 6061-T6 aluminum alloy
Electro tin plated provides low contact resistance
Chamfered wire entry provides ease of installation
Stacked design saves space and reduces installation time
Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
Application versatility
Ensures reliability for copper or aluminum conductors
1 in L x 1 in W x 5/16 in THK straight tongue
90 deg C temperature rating
1-stud

Specifications

Bolt/Stud Size:	5/16 in
Conductor Range:	6 AWG to 300 kcmil
Country of Origin:	MX
Electrical Ratings:	2000 VAC
Finish:	Electro-Plated Tin
Height:	2 in
Hex Size:	5/16 in
Length:	3 in
Material:	Aluminum
Number of Ports:	2
Suitable For Use With:	Aluminum or Copper Conductor
Width:	1 in
