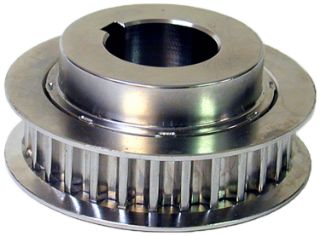

P36-5MGT-15 GAT

WARNING: Do NOT use these sprockets with rim speeds in excess of 6,500 fpm. Precision manufactured and static balanced to eliminate sprocket wobble. Designed to keep the load closer to the bearing and extend reducer life. Precise sprocket design produces positive, press fit to shaft. Easy installation and removal due to full split in bushing design. Space-saving design results in more shaft space. Details shown which do not affect drive function or overall weight may be changed without notification. On a sprocket, pitch is the distance between groove centers and is measured on the pitch circle of the sprocket. The pitch circle of the sprocket coincides with the pitch line of the belt mating with it. The pitch diameter of the sprocket is always greater than its outside diameter. 5MGT sprockets are available in minimum plain bore (MPB). Sprocket part numbers are comprised of pitch, number of grooves and width. For example; part number P52-5MGT-15 denotes 52 grooves, 5mm pitch and 15mm width. Abbreviations used for sprocket materials: GI=Gray Iron, DI=Ductile Iron, SiS=Sintered Steel, ST=Steel, CI=Cast Iron, A= Aluminum.
