P18-10R-C PAN

Name: P18-10R-C PAN
SKU: P18-10R-C PAN
Availability: OutOfStock

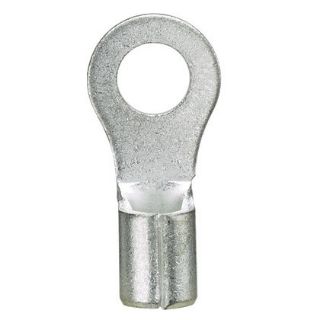

Actual Product May Vary From Image

Product Details

Manufacturer part number:

P18-10R-C

product.name:

P18-10R-C PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Type P-R

Description

Panduit® Pan-Term™ Ring Terminal, Type P-R Non-Insulated, Solid/Stranded Conductor, 18 AWG Conductor, #10 Stud, 0.71 in Length, Brazed Seam/Standard/Internal Serration/Insulation Support Barrel, 0.7 in ID x 0.14 in OD Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 2000 V, Specifications: 0.28 in Mounting Hole Size, 1/4 in Clearance, 9/32 in L Wire Strip, Ring Shape Enclosure, 302 deg F, Copper, Tin Plated, Silver

Application

For CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160 and CT-260 crimp tool

Standards

Features

Insulation support helps to prevent wire damage in bending applications
Ring tongue design assures a secure connection in high vibration applications
Brazed seam protects terminal barrel from splitting during the crimp process
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Size:	0.7 in ID x 0.14 in OD
Barrel Type:	Brazed Seam/Serrated/Standard
Color:	Silver
Conductor Size:	18 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Finish:	Tin Plated
Length:	0.71 in
Material:	Copper
Specifications:	0.28 in Mounting Hole Size, 1/4 in Clearance, 9/32 in L Wire Strip, Ring Shape Enclosure
Stud Size:	#10
Temperature Rating:	302 deg F
Tongue Size:	0.31 in W x 0.03 in THK
Tongue Type:	Ring
Voltage Rating:	2000 VAC
