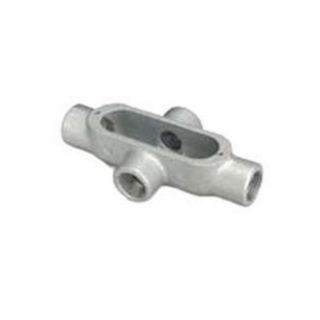

OZGX75A OZG

O-Z/Gedney X75A Type X Conduit Outlet Body, 3/4 in Hub, Form 85, 7 cu-in, Sand Cast Copper Free Aluminum, Epoxy Powder Coated/Aluminum Enamel
Manufacturer: Appleton
Manufacturer part number: X75A
Availability: Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
CBT - CINCINNATI CBT - SPRINGBORO CBT - SIDNEY
0 0 0
CBT - LEXINGTON CBT - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

O-Z/Gedney

Type

Type X

Description

O-Z/Gedney Aluminum Conduit Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.
O-Z/Gedney Conduit Outlet Body, Type X, 3/4 in Hub, 4 Hubs, 7 cu-in Capacity, Form 85 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Sand Cast Copper Free Aluminum, Epoxy Powder Coated/Aluminum Enamel Finish, 5.63 in L x 3 in W x 1.63 in H Dimensions

Application

Rigid/IMC Conduit Applications

Standards

UL 514A | UL 514B | UL File No. E2527 | C22.2 No. 18.3/065183 Certified

Features

  • Tapered threaded hubs (NPT)
  • Raintight when used with gasketed covers
  • Internal volume and maximum wire capacity clearly marked on castings
  • Suitable for wet locations when used with gasketed covers

Specifications

Capacity:7 cu-in
Connection Type:Tapered FNPT
Country of Origin:MX
Dimensions:5.63 in L x 3 in W x 1.63 in H
Enclosure:NEMA FB-1
Finish:Epoxy Powder Coated/Aluminum Enamel
Form:Form 85
Hub Size:3/4 in
Material:Sand Cast Copper Free Aluminum
Mounting Type:Surface
Number of Hubs:4
