OZGX125A OZG

Name: OZGX125A OZG
Brand: Appleton
SKU: OZGX125A OZG
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

X125A

CBT Inventory

Vendor Inventory

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

O-Z/Gedney

Type

Type X

Description

O-Z/Gedney Aluminum Conduit Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.

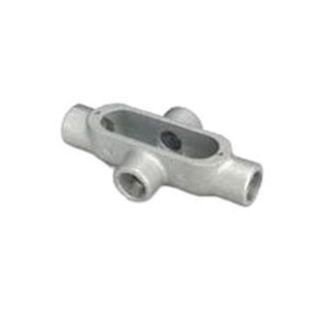

O-Z/Gedney Conduit Outlet Body, Type X, 1-1/4 in Hub, 4 Hubs, 32 cu-in Capacity, NEMA FB-1/FB-2.1 Enclosure, Tapered FNPT Connection, Die Cast Copper Free Aluminum, Epoxy Powder Coated Enamel, 9-1/8 in L x 4-1/2 in W x 2-5/8 in H

Application

Rigid/IMC Conduit Applications

Standards

UL 514A File No. E18095 | C22.2 File No. 18/LR9795 | Federal Specification A-A-50563 Class 1 Div 2 Per NEC Section 501-4(B)

Features

Tapered threaded hubs (NPT)
Raintight when used with gasketed covers
Internal volume and maximum wire capacity clearly marked on castings
Suitable for wet locations when used with gasketed covers

Specifications

Capacity:	32 cu-in
Connection Type:	Tapered FNPT
Country of Origin:	MX
Dimensions:	9-1/8 in L x 4-1/2 in W x 2-5/8 in H
Enclosure:	NEMA FB-1/FB-2.1
Finish:	Epoxy Powder Coated Enamel
Hub Size:	1-1/4 in
Material:	Die Cast Copper Free Aluminum
Number of Hubs:	4
