OZGX100A OZG

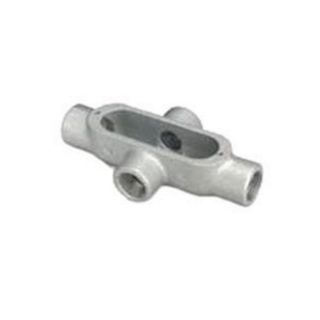

O-Z/Gedney X-100A Type X Conduit Outlet Body, 1 in Hub, Form 85, 11.8 cu-in, Sand Cast Copper Free Aluminum, Epoxy Powder Coated/Aluminum Enamel
Manufacturer: Appleton
Manufacturer part number: X-100A
Availability: Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
CBT - CINCINNATI CBT - SPRINGBORO CBT - SIDNEY
0 0 0
CBT - LEXINGTON CBT - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

O-Z/Gedney

Type

Type X

Description

O-Z/Gedney Aluminum Conduit Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.
O-Z/Gedney Conduit Outlet Body, Type X, 1 in Hub, 4 Hubs, 11.8 cu-in, Form 85, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Sand Cast Copper Free Aluminum, Epoxy Powder Coated/Aluminum Enamel, 6.69 in L x 3.5 in W x 1.8 in H

Application

Rigid/IMC Conduit Applications

Standards

UL 514A | UL 514B | UL File No. E2527 | C22.2 No. 18.3/065183 Certified

Features

  • Tapered threaded hubs (NPT)
  • Raintight when used with gasketed covers
  • Internal volume and maximum wire capacity clearly marked on castings
  • Suitable for wet locations when used with gasketed covers

Specifications

Capacity:11.8 cu-in
Connection Type:Tapered FNPT
Country of Origin:MX
Dimensions:6.69 in L x 3.5 in W x 1.8 in H
Enclosure:NEMA FB-1
Finish:Epoxy Powder Coated/Aluminum Enamel
Form:Form 85
Hub Size:1 in
Material:Sand Cast Copper Free Aluminum
Mounting Type:Surface
Number of Hubs:4
