OZGLL200A OZG

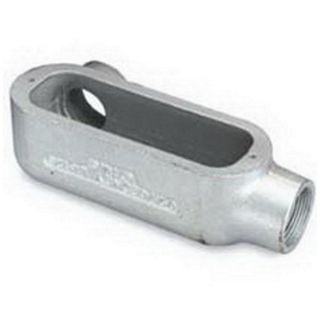

O-Z/Gedney LL200A Type LL Conduit Outlet Body, 2 in Hub, 77.5 cu-in Capacity, Die Cast Copper Free Aluminum, Aluminum Enamel/Epoxy Powder Coated
Manufacturer: Appleton
Manufacturer part number: LL200A
Availability: Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
CBT - CINCINNATI CBT - SPRINGBORO CBT - SIDNEY
0 0 0
CBT - LEXINGTON CBT - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

O-Z/Gedney

Type

Type LL

Description

O-Z/Gedney Aluminum Conduit Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.
O-Z/Gedney Conduit Outlet Body, Type LL, 2 in Hub, 2 Hubs, 77.5 cu-in Capacity, NEMA FB-1/FB-2.1 Enclosure, Tapered FNPT Connection, Die Cast Copper Free Aluminum, Aluminum Enamel/Epoxy Powder Coated, 10.125 in L x 4.19 in W x 3.375 in H

Application

Rigid/IMC Conduit Applications

Standards

UL 514A File No. E18095 | C22.2 File No. 18/9795 | Federal Specification A-A-50563 Class 1 Div 2 Per NEC Section 501-4(B)

Features

  • Tapered threaded hubs (NPT)
  • Raintight when used with gasketed covers
  • Internal volume and maximum wire capacity clearly marked on castings
  • Suitable for wet locations when used with gasketed covers

Specifications

Capacity:77.5 cu-in
Connection Type:Tapered FNPT
Country of Origin:IN
Dimensions:10.125 in L x 4.19 in W x 3.375 in H
Enclosure:NEMA FB-1/FB-2.1
Finish:Aluminum Enamel/Epoxy Powder Coated
Hub Size:2 in
Material:Die Cast Copper Free Aluminum
Number of Hubs:2
