OX-2 KIL

Name: OX-2 KIL
Brand: Killark
SKU: OX-2 KIL
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Killark

Manufacturer part number:

OX-2

product.name:

OX-2 KIL

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 42 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Killark®

Type

Type X

Description

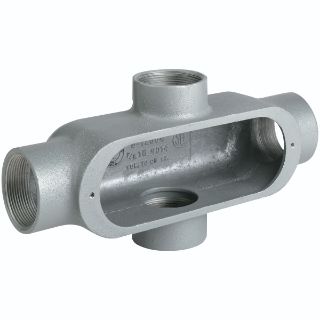

O series conduit bodies are our most compact conduits that apply highest durability with the securest installation. The O series is available in iron and aluminum, with superior corrosive protected electro-statically applied paint.

Killark® Duraloy® 5 Conduit Body, Type X, Series: O Series, 3/4 in Hub, 4 Hubs, 7 cu-in Capacity, Thread Connection, Aluminum, Powder Coated, Gray, 6-1/16 in L x 2-7/8 in W x 2 in H Dimensions

Application

Rigid/IMC Conduit

Standards

CSA LR11852 | UL File No. E3397

Features

Raintight when used with gasketed covers
Malleable iron suitable for use in concrete
Stainless steel screws on stamped and cast cover
Interchangeable with competitive products
Tapered threaded hubs (NPT)
To provide access to conductors for pulling, splicing and maintenance
Copper free aluminum (less than 4/10 of 1%)
Suitable for wet locations when used with gasketed covers
Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
Electrostatically applied powder coated

Specifications

Capacity:	7 cu-in
Color:	Gray
Connection Type:	Thread
Country of Origin:	US
Dimensions:	6-1/16 in L x 2-7/8 in W x 2 in H
Finish:	Powder Coated
Form:	Form 5
Hub Size:	3/4 in
Material:	Aluminum
Number of Hubs:	4
Series:	O Series
