OSFHU-ITW LEV

Name: OSFHU-ITW LEV
Brand: Leviton Manufacturing
SKU: OSFHU-ITW LEV
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

OSFHU-ITW

product.name:

OSFHU-ITW LEV

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

High Bay

Description

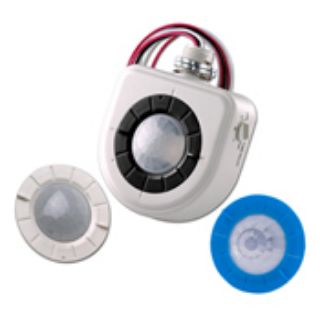

The OSFHU high bay occupancy sensor is specifically designed for high mounted areas such as warehouses, manufacturing and other high ceiling applications. The OSFHU installs directly to an industrial fluorescent luminaire or an electrical junction box. It is a self-contained sensor and relay that turns individual light fixtures on or off based on occupancy in the detection zone. It comes with three interchangeable lenses for use in either a 360 deg high bay or 360 deg low bay general area or an aisle way. The OSFHU provides reliable coverage up to 40 ft mounting heights. The OSFHU is also available in a model for cold storage applications with temperatures as low as 40 deg F. To improve the field of view for deep body fixtures, a separate offset adapter accessory (OSFOA-00W) can be used to position the sensor below the fixture body. The adapter simply snaps into a 1/2 in knockout on the end of the industrial fixture to attach the sensor.

Leviton® Occupancy Sensor, High Bay, 120/230/277/347/240/480 VAC, 800 to 2000 VA Power, PIR Sensor, 40 ft Coverage, 360 deg Viewing, 30 s to 30 min Time Delay, 50/60 Hz Response, Fixture Mounting, 14 to 160 deg F, Plastic, White, 3-1/2 in H x 3-1/2 in W x 1-1/4 in D Dimensions

Application

Commercial Applications

Standards

UL/cUL Listed | Title 24 Compliant | ASHRAE 90.1

Features

Fast, easy time delay setting, reduce time and materials

Specifications

Color:	White
Country of Origin:	CN
Coverage:	40 ft
Dimensions:	3-1/2 in H x 3-1/2 in W x 1-1/4 in D
Material:	Plastic
Mounting Type:	Fixture
Power Rating:	800 to 2000 VA
Response Frequency:	50/60 Hz
Sensor Type:	PIR
Temperature Rating:	-10 to 71 deg C
Time Delay:	30 s to 30 min
Viewing Angle:	360 deg
Voltage Rating:	120/230/277/347/240/480 VAC
