NU205EG NAC

Cylindrical roller bearings utilize a modified cylindrical roller that provides line contact with the inner and outer ring raceways. They are suitable for high speeds and have a high radial load capacity. The rollers are guided by ribs on either the inner or outer rings. Depending upon the configuration, the bearings may or may not be able to accept any axial loading. The inner and outer rings are separable which may aid in the assembly/disassembly of components The 'NU' Type bearings has shoulders on both sides of the outer ring and no shoulder on the inner ring. This allows the shaft to move axially for thermal expansion. Some sizes may be available in a high capacity design (EG) that has larger diameter rollers and a polyamine cage. Stamped steel or machined brass (MY) cages are generally used. These bearings are most commonly used in pumps, compressors, gearboxes, transmissions, rolling mills, crushers and pulverizers. This bearing is often used in high speed applications.

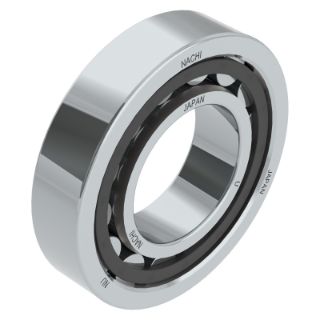

NACHI Cylindrical Roller Bearing, Series: NU Series, 25 mm Bore, 52 mm OD, 1 Row, 15 mm Width, Open Closure, 29300 N Dynamic/27700 N Static Load, Steel Alloy Bearing, Molded Nylon Cage, 12000 rpm Grease/14000 rpm Oil Maximum
