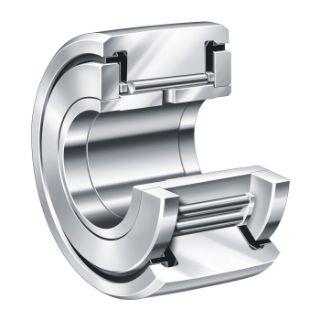

Actual Product May Vary From Image

NATR10-PP-A INA

Name: NATR10-PP-A INA
Brand: INA
SKU: NATR10-PP-A INA
Availability: OutOfStock

INA NATR10-PP-A Crowned Yoke Type Track Roller With Inner Ring and Axial Guidance, 10 mm Dia Bore, 30 mm Dia x 14 mm W Roller, 8600 N Load, Steel Roller

Manufacturer: INA

Manufacturer part number: NATR10-PP-A

Availability: Expected Leadtime 5 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

INA

Type

Crowned Yoke Type

Description

Yoke type track rollers are single or double-row units mounted on shafts or studs. They comprise thick-walled outer rings with a profiled outside surface and needle roller and cage assemblies or full-complement rolling element sets.

INA Track Roller, Crowned Yoke Type, Series: NATR, 10 mm Bore, 30 mm Roller Diameter, 14 mm Roller Width, 15 mm Overall Width, 8600 N Load, Double Seal Closure, 5500 rpm Maximum, -30 to 100 deg C, Steel Roller, Uncoated

Application

Cam Gears, Bed Ways, Conveying Equipment and Linear Guidance Systems

Features

Yoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running
Needle roller design
Plastic axial plain washer with formed seal lip on both sides of the bearing, giving a three stage seal
6800 N dynamic/8600 N static

Specifications

Bore Diameter:	10 mm
Closure Type:	Double Seal
Country of Origin:	DE
Finish:	Uncoated
Load Capacity:	8600 N
Maximum Speed:	5500 rpm
Overall Width:	15 mm
Roller Diameter:	30 mm
Roller Material:	Steel
Roller Width:	14 mm
Series:	NATR
Temperature Rating:	-30 to 100 deg C
