Actual Product May Vary From Image

N6910TNTG18 RBC

Name: N6910TNTG18 RBC
Brand: Roller Bearing Corporation
SKU: N6910TNTG18 RBC
Availability: OutOfStock

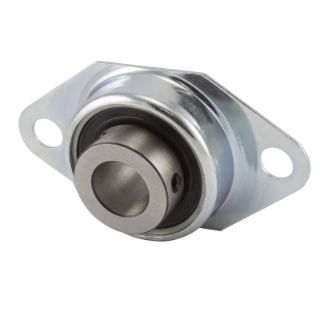

Nice® N6910TNTG18 6900 Semi-Ground Medium Duty Round Bore Flange Mount Radial Ball Bearing, 5/8 in Dia Bore, 2-7/8 in L Bolt Center-to-Center, 3-3/4 in OAL/Dia

Manufacturer: Roller Bearing Corporation

Manufacturer part number: N6910TNTG18

Availability: Expected Leadtime 5 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Nice®

Type

Semi-Ground Medium Duty Round Bore

Description

The 6900® Series bearing consists of a double sealed, semi-ground bearing with an extended inner ring. It is provided with two set screws and a flanged housing designed for flush mounting. Bearings are supplied assembled in the housing. Flanged and non-flanged units are available from stock. The pressed steel flanged housing provides a secure yet inexpensive means for holding the bearing in place. Although these units are not of the self-aligning type, they will accommodate a limited amount of angular misalignment.

Nice® Flange Mount Radial Ball Bearing, Semi-Ground Medium Duty Round Bore, Series: 6900, 5/8 in Bore, 2-7/8 in Bolt Center-to-Center Length, 3-3/4 in Overall Length/Diameter, 1 in Overall Depth, 1-7/8 in Overall Height, Set Screw Locking Device, 52100 Steel Bearing, Rubber Seal, 1610 lb Dynamic/1010 lb Static Load, 3000 rpm Maximum, 300 deg F, Chrome Steel

Application

Textile Machinery, Agricultural Machinery, Pulleys, Idlers and Material Handling Equipment

Standards

ASPR | CAS | DFAR | FAR Standards

Features

Bearing manufactured with flanged housing to aid in installation
Pregreased with metered Shell Alvania #2 grease
Designed for moderate loads and speeds
Extended inner ring with two set screws for securing a shaft
Although not the self-aligning type, this bearing will accommodate a limited amount of angular misalignment
Through hardened bearing steel
Nylon retainer and cage
Double sealed
Non-expansion
Non-relubricable

Specifications

Bearing Material:	52100 Steel
Bolt Center-to-Center Length:	2-7/8 in
Bore Diameter:	5/8 in
Country of Origin:	US
Finish:	Chrome Steel
Load Capacity:	1610 lb Dynamic/1010 lb Static
Locking Device:	Set Screw
Maximum Speed:	3000 rpm
Overall Depth:	1 in
Overall Height:	1-7/8 in
Overall Length/Diameter:	3-3/4 in
Seal Material:	Rubber
Series:	6900
Temperature Rating:	300 deg F
