MSL3-024 FSG

Name: MSL3-024 FSG
Brand: Federal Signal
SKU: MSL3-024 FSG
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Federal Signal

Manufacturer part number:

MSL3-024

product.name:

MSL3-024 FSG

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Federal Signal

Description

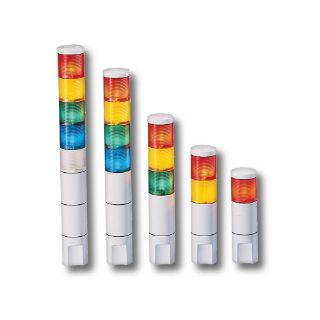

The Federal Signal MicroStat® is a compact, type 4X status indicator, type 1 with optional sounder. Ideal for OEM applications, the MicroStat® comes pre-assembled as 1, 2, 3, 4 or 5-high light units. The user selects combinations from five colors, amber, blue, clear, green and red. O-rings between each segment provide a water-tight and dust-tight seal. The MSL1, MSL2, MSL3 are available in 24 VAC/VDC, 120 VAC and 240 VAC, the MSL4 and MSL5 are available in 24 VAC/VDC and 120 VAC. The base of each light can be surface or pipe mounted (3/4 in NPT).

Federal Signal MicroStat® Status Indicator Stack Light, Series: MSL, 24 VAC/VDC, 0.6 A, 5.6 W, 3 Lights, Wedge Lamp, Amber/Blue/Clear/Green/Red, 7000 hr Average Life, Surface Mount, 4X, 32 to 104 deg F, Polycarbonate, 2.2 in W x 2.2 in D x 12.5 in H

Application

Indoor Applications

Standards

BAA Compliant | cUL Listed | UL Listed

Features

Factory assembled
Small footprint only 2.2 in Dia
Vibration resistant 5.6 W wedge lamp
PLC compatible
3/4 in NPT pipe/surface mounting

Specifications

Amperage Rating:	0.6 A
Average Life:	7000 hr
Color:	Amber/Blue/Clear/Green/Red
Country of Origin:	US
Dimensions:	2.2 in W x 2.2 in D x 12.5 in H
Lamp Type:	Wedge
Material:	Polycarbonate
Mounting Type:	Surface
NEMA Rating:	4X
Number of Lights:	3
Series:	MSL
Temperature Rating:	32 to 104 deg F
Voltage Rating:	24 VAC/VDC
Wattage:	5.6 W
