MPLB4540FMJ72AA AB

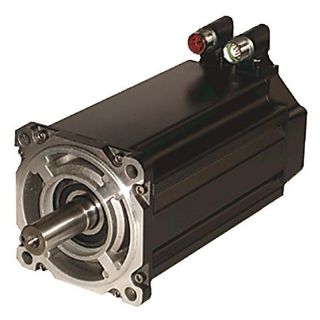

Picture of MPLB4540FMJ72AA AB
Actual Product May Vary From Image

Product Details

Manufacturer:
Allen-Bradley
Manufacturer part number:
MPL-B4540F-MJ72AA
product.name:
MPLB4540FMJ72AA AB
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
Estimated dates are contingent upon manufacturer stock.
Price on Request
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Allen-Bradley

Type

Servo Motor

Description

Bulletin MPL Low Inertia Brushless Servo Motors Product, 460 V, Frame Size 45 = 130 mm (5.12 in.), Stack Length 40 = 101.6 mm(4.0 in.), 3000 RPM, Multi turn High resolution Encoder (absolute feedback). Keyed Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180 Degrees Rotatable (Quick Connect), No Brake, IEC Metric, Free Mounting Holes (Type FF)

Standards

CE,CUL,KC,UL

Features

low inertia

Specifications

Armature Voltage:460 V
Brake Option:No Brake
Connectors:SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)
Country of Origin:MX
Enclosure:Keyed Shaft Extension
Factory Options:Standard
Feedback:Multi-turn High-resolution Encoder (absolute feedback)
Frame:45 = 130 mm (5.12 in.)
Magnet Stack Length:40 = 101.6 mm (4.0 in.)
Mounting:IEC Metric, Free Mounting Holes (Type FF)
Speed Rating:3000 RPM
Sub Brand:MP-Series
