MPD-47 SMT

Name: MPD-47 SMT
Brand: Regal Rexnord
SKU: MPD-47 SMT
Availability: InStock

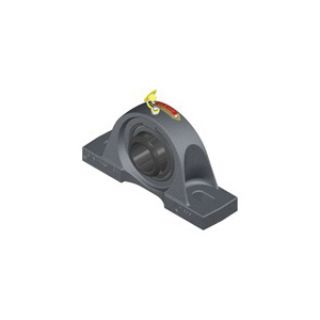

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

702313

product.name:

MPD-47 SMT

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Sealmaster®

Type

Medium Duty

Description

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing, and lubrication options or industry specific solutions.

Sealmaster® Pillow Block Ball Bearing Unit, Medium Duty, Series: MPD, 2-15/16 in Bore, 7-7/8 to 10-1/8 in Bolt Center-to-Center Length, 3-1/2 in Base to Bore Centerline, 13 in Overall Length, 3-7/8 in Overall Width, 7-1/4 in Overall Height, Two-Bolt Base Mounting, Round Bore, 3-1/2 in Base Width, Double Set Screw Locking Device, Felt Seal, Non-Expansion (Fixed) Expansion, 17412 lb Dynamic Load, 250 deg F, 3150 rpm Maximum, Cast Iron, Uncoated

Application

Aggregate and Cement, Forestry, HVAC, Metals, Minerals and Mining, Packaging Machinery and Unit Handling

Features

Wide outer ring
Lock pin and dimple
Zone hardened inner race
Land riding retainer
Housing fit
Metal nameplate riveted to the housing allows for easy identification even after years of operation
GoldPlex®-HP grease
Alemite fitting lubrication
52100 black oxide coated steel bearing

Specifications

Base to Bore Centerline:	3-1/2 in
Base Width:	3-1/2 in
Bolt Center-to-Center Length:	7-7/8 to 10-1/8 in
Bore Diameter:	2-11/16 in
Bore Type:	Round
Country of Origin:	US
Expansion Type:	Non-Expansion (Fixed)
Finish:	Uncoated
Load Capacity:	14839 lb Dynamic
Locking Device:	Double Set Screw
Material:	Cast Iron
Maximum Speed:	1050 rpm
Mounting Type:	Two-Bolt Base
Overall Height:	7 in
Overall Length:	13 in
Overall Width:	3-1/2 in
Seal Type:	Contact
Series:	MPD
Temperature Rating:	-40 to 200 deg F
