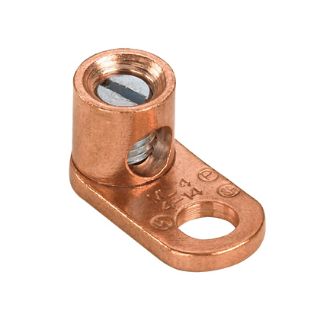

Actual Product May Vary From Image

ML1/0-LY PAN

Name: ML1/0-LY PAN
SKU: ML1/0-LY PAN
Availability: OutOfStock

Panduit® Pan-Lug™ ML1/0-LY Type ML Mechanical Connector Lug, 8 to 1/0 AWG Solid/Stranded Copper Conductor, 5/16 in Stud, 1 Bolt Holes, Cast Copper

Manufacturer part number: ML1/0-LY

Availability: Expected Leadtime 133 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Panduit®

Type

1- Barrel

Description

Panduit® Pan-Lug™ Mechanical Connector Lug, Type ML, Solid/Stranded Copper Conductor, 8 to 1/0 AWG Conductor, 5/16 in Stud, 1 Bolt Holes, 0.8 in L x 0.73 in W x 0.09 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 1-Barrel, 1/4 in Hex Key, 90 deg C, Cast Copper, 1.54 in L x 0.79 in H Dimensions

Application

For copper code conductors applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | cULus Listed | UL Listed

Features

Made from high strength electrolytic copper to provide premium electrical and mechanical performance
Wire range taking, inspection window, high strength copper, compact design, flat for complete surface contact
Compact design saves space
Wide wire range taking capability minimizes inventory requirements
Inspection window to visually assure full conductor insertion
Plated steel set screw provides high strength, durable electrical contact between conductor and connector
Flat bottom allows for complete contact with mounting surface

Specifications

Conductor Size:	14 to 1/0 AWG
Conductor Type:	Solid/Stranded Copper
Country of Origin:	IN
Dimensions:	1.54 in L x 0.79 in H
Material:	Cast Copper
Number of Bolt Holes:	1
Series:	ML Series
Specifications:	1-Barrel, 1/4 in Hex Key
Stud Size:	5/16 in
Temperature Rating:	90 deg C
Tongue Size:	0.8 in L x 0.73 in W x 0.09 in THK
Tongue Type:	Straight
Voltage Rating:	600 VAC
